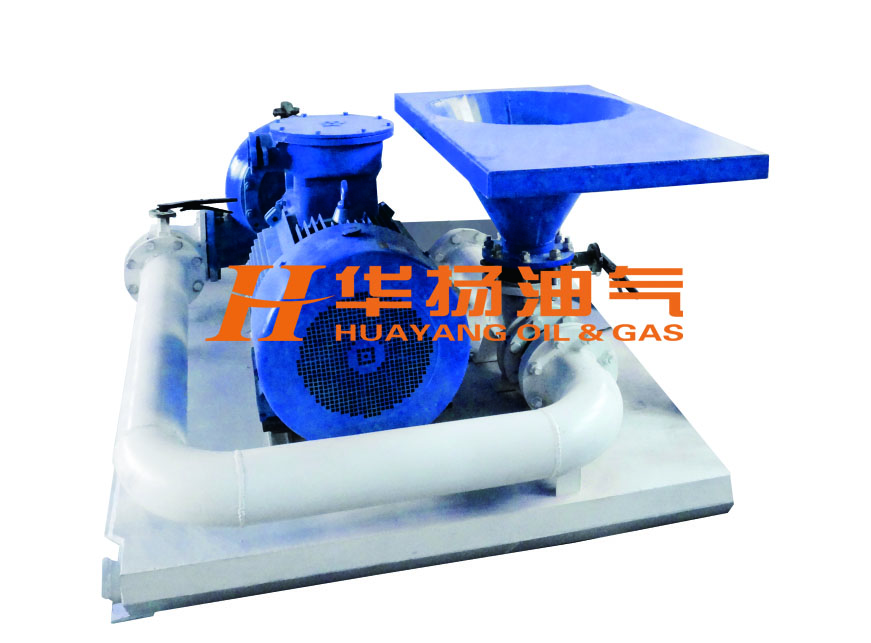

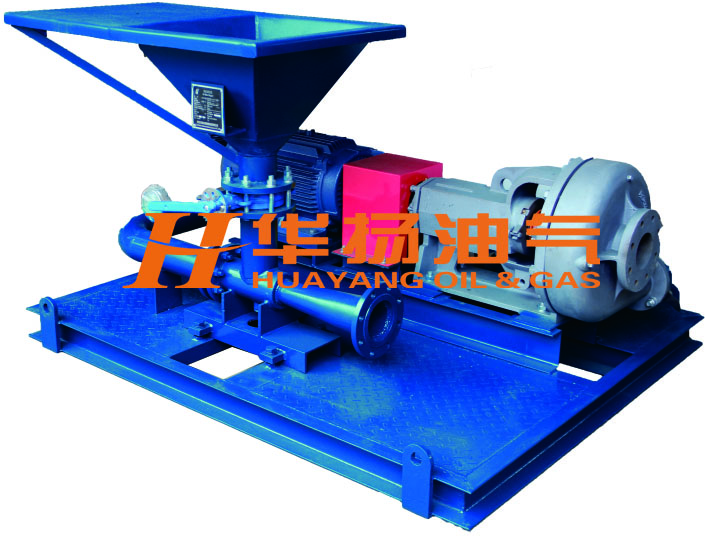

Jet Mud Mixer
| Model | HYSLH150-50 | HYSLH150-40 | HYSLH150-30 | HYSLH100 |
| Capacity | 240?/h | 180?/h | 120?/h | 60?/h |
|
Matching Pump |
TRSB8×6-13J | TRSB6×5-13J | TRSB5×4-14J | TRSB4×3-11J |
|
Motor Power |
55kW | 45kW | 37kW | 11kW |
|
Work Pressure |
0.25～0.4MPa | |||
| Inlet | 150mm | 150mm | 150mm | 100mm |
|
Nozzle Caliber |
50 | 40 | 30 | 25 |
|
Hopper Dimension |
750×750mm | 750×750mm | 600×600mm | 500×500mm |
|
Burden Speed |
≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
|
Dimensions |
2200×1700×1200mm | 2200×1700×1200mm | 2000×1650×1100mm |
2000×1650×1100mm |
