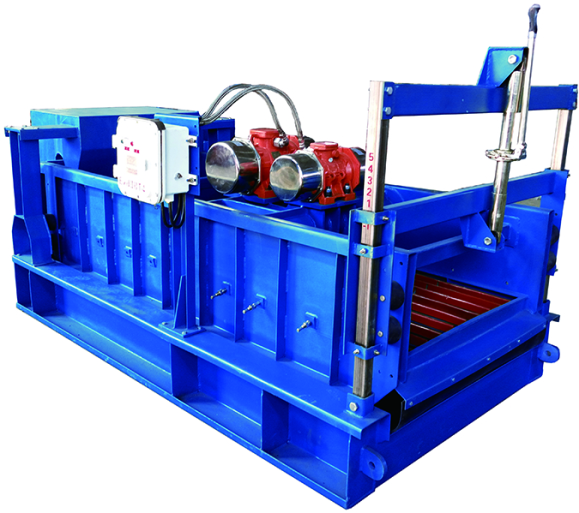

^鉆井液振動篩:Shale shaker
鉆井液振動篩的工作原理:振動電機產生的激振力帶動篩床做直線,圓形,橢圓形或平動橢圓運動。而篩網將起到過濾篩分的作用,將大顆粒鉆屑等固體篩分出來,帶有細小顆粒經過處理的干凈泥漿將落到振動篩倉等待下一級處理。分離出去的大的固體顆粒 (通常為74微米以上)在激振力下被輸送到篩床外,排到罐外。
功能詳情 技術參數
西安華揚油氣設備有限公司產品特點Features and Benefits:
1.篩箱材質選用高錳合金鋼,具有高強度,延長篩箱壽命。High manganese steel alloy for screen basketwith high strengthlengthen the service life of screen basket.
2.選用國際品牌振動電機,Martin 電機或者 OLI 電機。Adopted international brand vibration motorMartin or OLI motor.
3.篩箱整機熱處理,表面重防腐涂層,保障振動篩的使用壽命長。Hot treatment for screen basketheavy anti-corrosive coating for surfaceguarantee the service life of shale shaker.
4.高G力的激振強度(可以進行調整),可以滿足高粘度高比重泥漿分離。High G force vibration strength(adjustable)can meet the separation of high viscosity and specific gravity drilling mud.
5.篩網可以選用板式拉緊固定和楔緊塊固定。Fixation of plate tension and wedge are both available for screen.
6.進漿漏斗選用圍堰式和頂置式,使泥漿緩沖、均流,減少對篩網的沖擊。Cofferdam and overhead for feeding hopper can make the mud buffering equalized flow and then decrease the impact to screens.
7.電氣元件選用國際品牌施耐德或西門子。International brand Schneider or Siemens.
1.篩箱材質選用高錳合金鋼,具有高強度,延長篩箱壽命。High manganese steel alloy for screen basketwith high strengthlengthen the service life of screen basket.
2.選用國際品牌振動電機,Martin 電機或者 OLI 電機。Adopted international brand vibration motorMartin or OLI motor.
3.篩箱整機熱處理,表面重防腐涂層,保障振動篩的使用壽命長。Hot treatment for screen basketheavy anti-corrosive coating for surfaceguarantee the service life of shale shaker.
4.高G力的激振強度(可以進行調整),可以滿足高粘度高比重泥漿分離。High G force vibration strength(adjustable)can meet the separation of high viscosity and specific gravity drilling mud.
5.篩網可以選用板式拉緊固定和楔緊塊固定。Fixation of plate tension and wedge are both available for screen.
6.進漿漏斗選用圍堰式和頂置式,使泥漿緩沖、均流,減少對篩網的沖擊。Cofferdam and overhead for feeding hopper can make the mud buffering equalized flow and then decrease the impact to screens.
7.電氣元件選用國際品牌施耐德或西門子。International brand Schneider or Siemens.
型號(Model) | HYPS703 | HYPS585-4 | HYZS703 | HYZS585 | HYZS752 |
振動軌跡 Vibration Motion |
橢圓型 Balanced Elliptical Motion |
直線型 Linear Motion |
|||
處理量 Treatment Capacity |
130m³/h | 140m³/h | 120m³/h | 130m³/h | 60m³/h |
電機功率 Motor Power |
1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 | 0.75KW×2 |
篩網規格 Screen Specs. |
(700×1250mm)×3 | (585×1165mm)×4 | (830×1050mm)×3 | (585×1165mm)×4 | (750×900mm)×2 |
篩網面積 Screen Area |
2.6m² | 2.7m² | 2.6m² | 2.7m² | 1.4m² |
震動強度 Vibration Strength |
≤7.1G (可調) |
≤7.1G (可調) |
≤7.1G (可調) |
≤7.1G (可調) |
≤7.1G (可調) |
雙振幅 Double Amplitude |
7mm | 7mm | 6mm | 6mm | 5mm |
調節角度 Deck Adjustment |
-1°~+5° | -1°~+5° | -1°~+5° | -1°~+5° | +3° |
防爆標準 Ex Standard |
ExdIIBt4 / IECEX / A-TEX | ||||
重量 Weight | 1630kg | 1618kg | 1620kg | 1600kg | 900kg |
外形尺寸 Dimension |
2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm | 1835×1280×1200mm |
備注 Remark |
以上數據是測試從鉆井泥漿粘度45 s,比重1.2克/立方厘米。 Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
