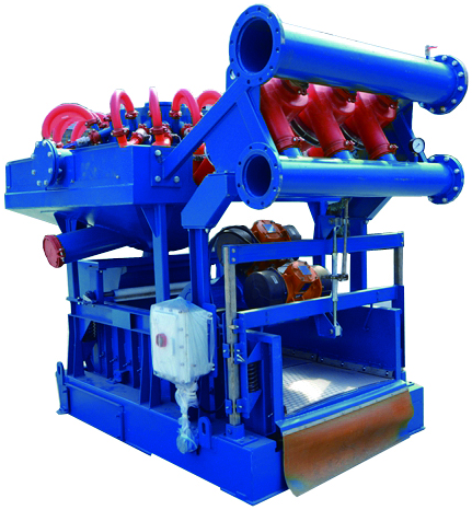

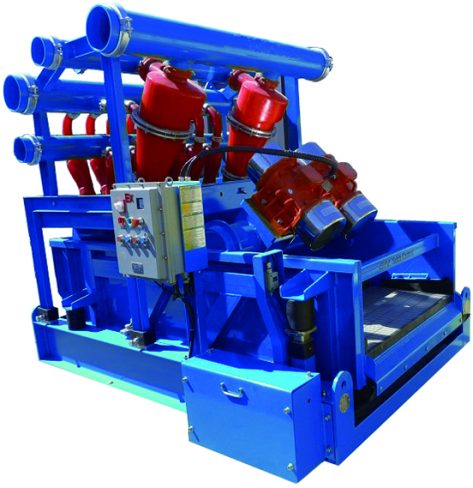

^除砂除泥清潔器:Mud Cleaner
將振動篩,除砂器和除泥器融為一體。鉆井液泥漿經過振動篩的處理之后,固體顆粒變小,含量降低,需要對鉆井泥漿進行更進一步的凈化。鉆井泥漿經由供漿泵從沉砂倉泵取到除砂旋流器內,經過旋流器的分離,>47微米的固體顆粒大部分被噴射出去落到底流篩上,在底流篩上進一步被篩分,排放到罐外,而進入到除砂倉內的泥漿,將再次被除泥器供漿泵輸送到除泥旋流器內,此時多數>15微米的固體顆粒被排出,同樣經過底流篩的過濾傳送,落到除泥倉內的泥漿固體顆粒大部分都<15微米,為離心機的進一步處理做了充分的準備。
功能詳情 技術參數
西安華揚油氣設備有限公司除泥除砂清潔器產品特點Features and Benefits:
1.除砂、除泥、振動篩一體,結構設計緊湊,體積小。(Integration of desander desilter and shale shakercompact design for structuresmall volume.)
2.旋流器選用高鉻鑄鐵內襯聚氨酯或整體聚氨酯材料,使用壽命長。(Selected lined polyurethane or pure polyurethanelong service life.)
3.篩箱材質選用高錳合金鋼,具有高強度,延長篩箱壽命。(High manganese steel alloy for screen basketwith high strengthlengthen the service life of screen basket.)
4.選用國際品牌振動電機,Martin 電機或者 OLI 電機。(Adopted international brand vibration motorMartin or OLI motor.)
5.篩箱整機熱處理,表面重防腐涂層,保障振動篩的使用壽命長。(Hot treatment for screen basketheavy anti-corrosive coating for surfaceguarantee the service life of shale shaker. )
6.高G力的激振強度(可以進行調整),可以滿足高粘度高比重泥漿分離。(High G force vibration strength(adjustable)can meet the separation of high viscosity and specific gravity drilling mud.)
7.篩網可以選用板式拉緊固定和楔緊塊固定。(Fixation of plate tension and wedge are both available for screen.)
8.電氣元件選用國際品牌施耐德或西門子。(.International brand Schneider or Siemens.)
1.除砂、除泥、振動篩一體,結構設計緊湊,體積小。(Integration of desander desilter and shale shakercompact design for structuresmall volume.)
2.旋流器選用高鉻鑄鐵內襯聚氨酯或整體聚氨酯材料,使用壽命長。(Selected lined polyurethane or pure polyurethanelong service life.)
3.篩箱材質選用高錳合金鋼,具有高強度,延長篩箱壽命。(High manganese steel alloy for screen basketwith high strengthlengthen the service life of screen basket.)
4.選用國際品牌振動電機,Martin 電機或者 OLI 電機。(Adopted international brand vibration motorMartin or OLI motor.)
5.篩箱整機熱處理,表面重防腐涂層,保障振動篩的使用壽命長。(Hot treatment for screen basketheavy anti-corrosive coating for surfaceguarantee the service life of shale shaker. )
6.高G力的激振強度(可以進行調整),可以滿足高粘度高比重泥漿分離。(High G force vibration strength(adjustable)can meet the separation of high viscosity and specific gravity drilling mud.)
7.篩網可以選用板式拉緊固定和楔緊塊固定。(Fixation of plate tension and wedge are both available for screen.)
8.電氣元件選用國際品牌施耐德或西門子。(.International brand Schneider or Siemens.)
型號Model | HYQJ200×1S-100×4N | HYQJ200×2S-100×8N | HYQJ250×2S-100×12N | HYQJ250×3S-100×20N |
處理量Treatment Capacity | 60m³ | 120m³ | 240m³ | 320m³ |
除砂旋流器尺寸 Desander Cyclone Specs |
8in | 10in | ||
除砂旋流器數量 Desander Cyclone Qty |
1nos | 2nos | 2nos | 3nos |
除泥旋流器尺寸 Desilter Cyclone Specs |
4in | |||
除泥旋流器尺寸 Desilter Cyclone Qty |
5nos | 8nos | 12nos | 20nos |
工作壓力Working Pressure | 0.25~0.4mpa | |||
進漿口直徑Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
出漿口直徑Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
分離點Separation Point | 15μm~44μm | |||
底流篩型 Bottom Shaker | HYZS60/N/A | HYZS752/N/A | HYZS752/N/A | HYZS703/N/A |
外形尺寸Dimension | 1510×1160X2000mm | 1835×1230×1810mm | 1835×1230×1810mm | 2419×2150×2147mm |
重量Weight | 600kg | 980kg | 1250kg | 2350 kg |
